Reader Configuration

Written By Kamakshi Mahajan

How to set up a new reader to use with ZenduONE Indoor

To configure a new reader:

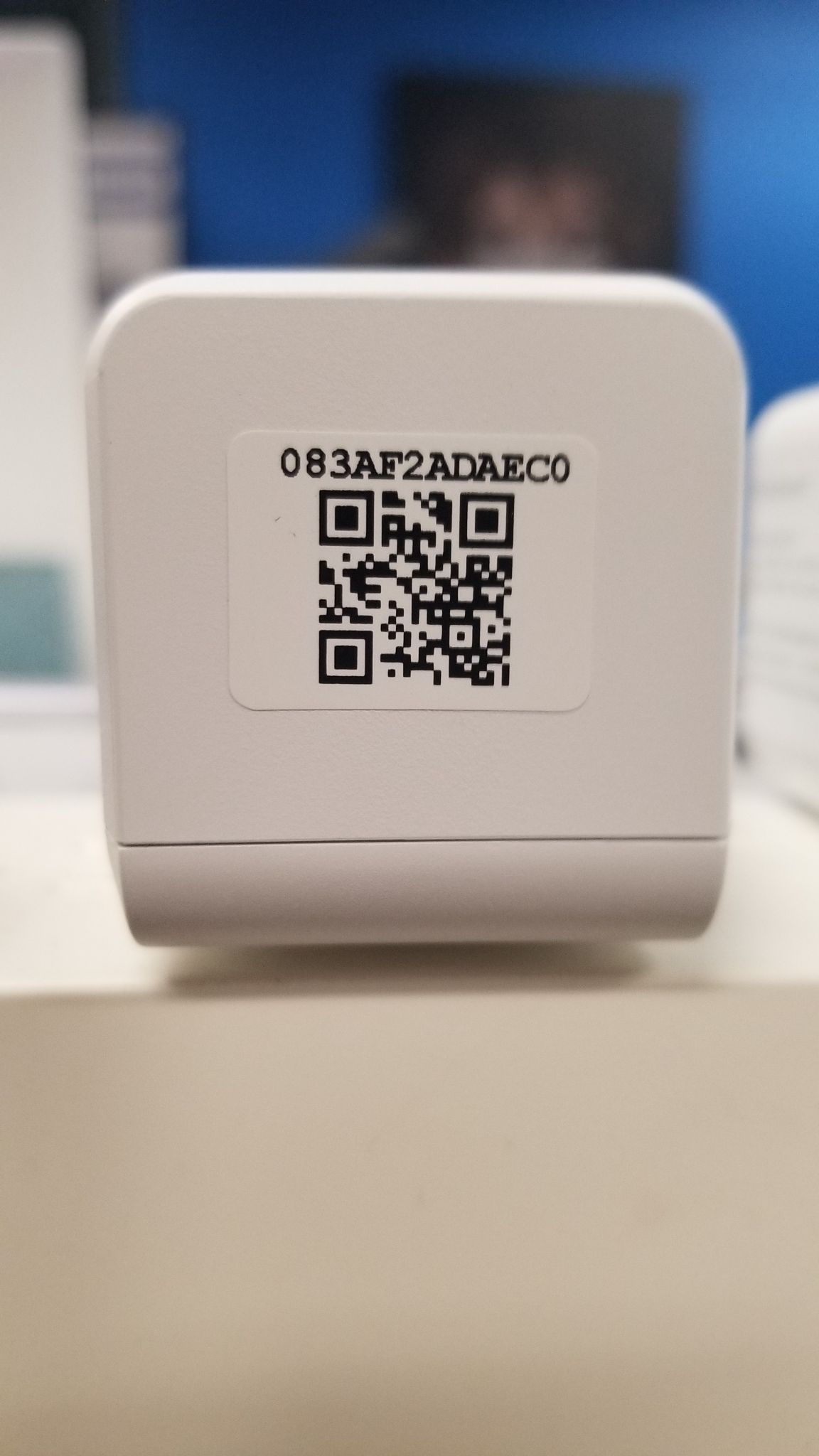

  • Take a new Bluetooth Gateway Plug Mini reader out of the box and record the MAC ID, located above the QR code on the side of the reader.

  1. Plug the reader into a wall socket. You do not need to press the power button, and there will be no light or sound indication that it is working.

  2. Connect to the Wi-Fi network ZENDUIT_BLE through your phone.

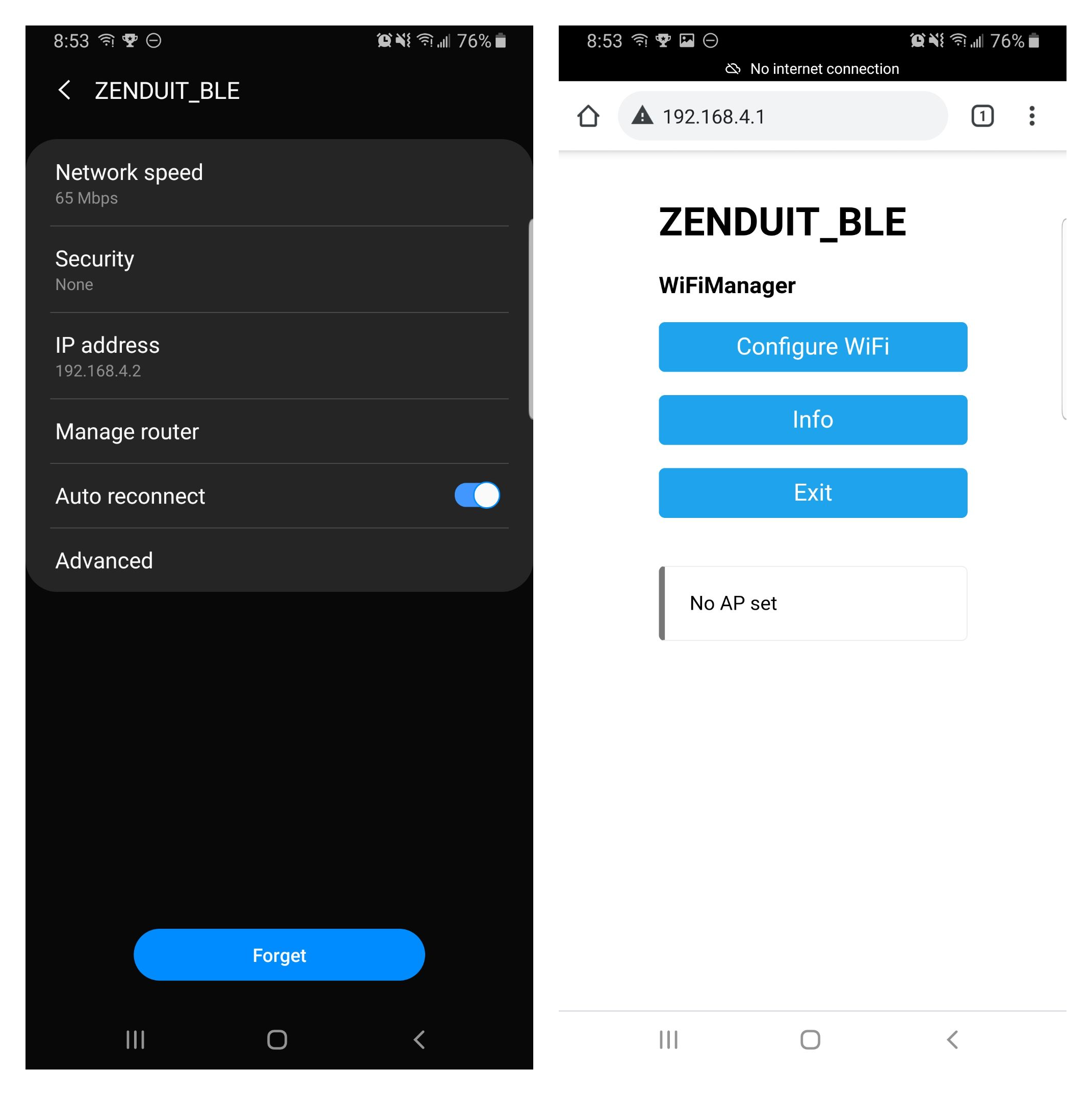

  • Navigate to the network settings or Wi-Fi management tab and then Manage Router. Some possible ways to try are:

    a. Click the Wi-Fi network again

    b. Advanced Wi-Fi settings

    c. Open a chrome or internet browser tab

    d. Check your notifications

  • Click Configure WiFi

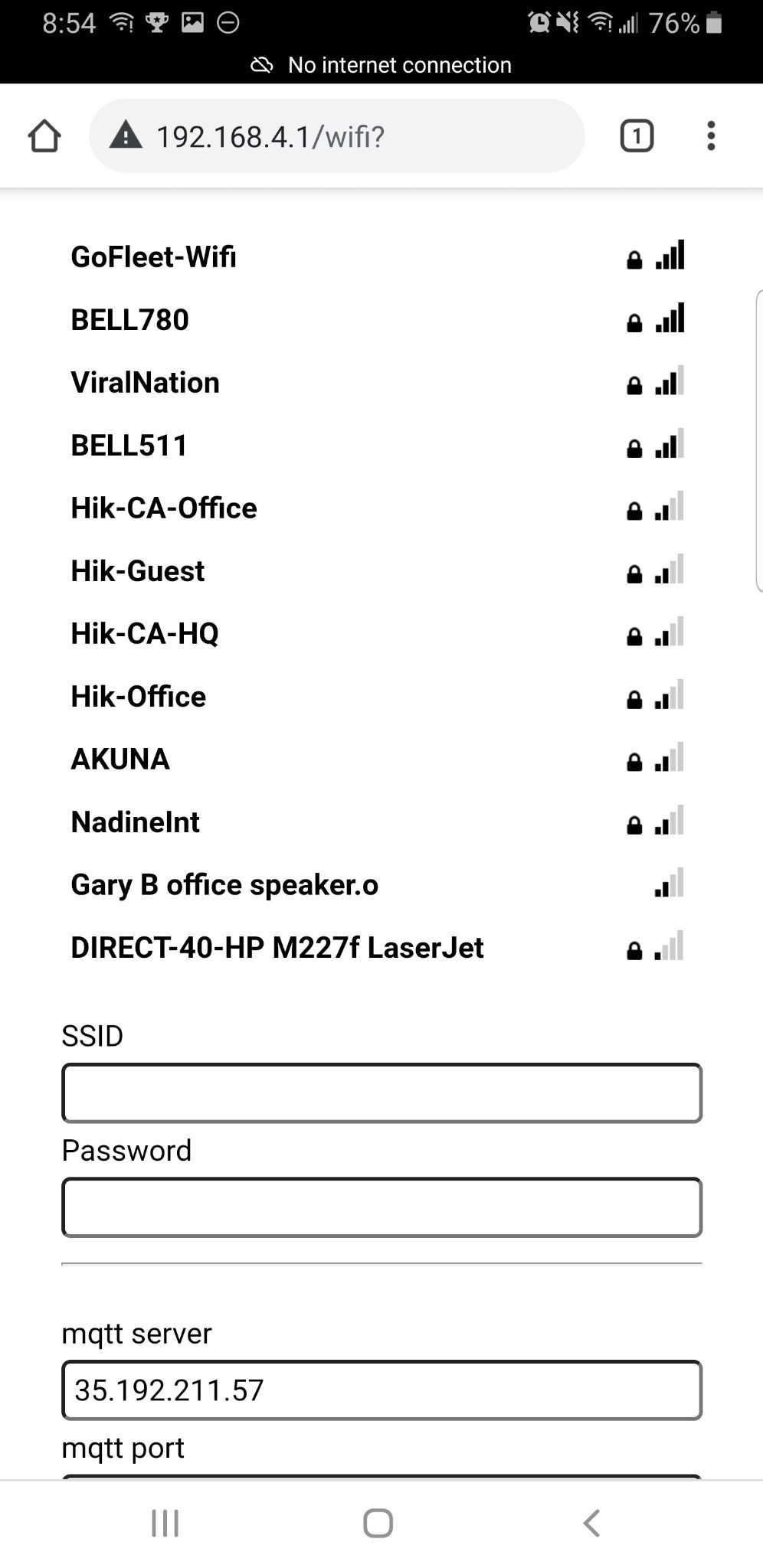

  • Enter the SSID and password. DO NOT PRESS SAVE YET.

SSID: GoFleet-Wifi

Password: 18889981122##


  • Press Save.

    a. If you saved a setting wrong or pressed save early, you must factory reset the reader by pressing the power button on the side for 30 seconds, and repeat from the beginning of step 3.

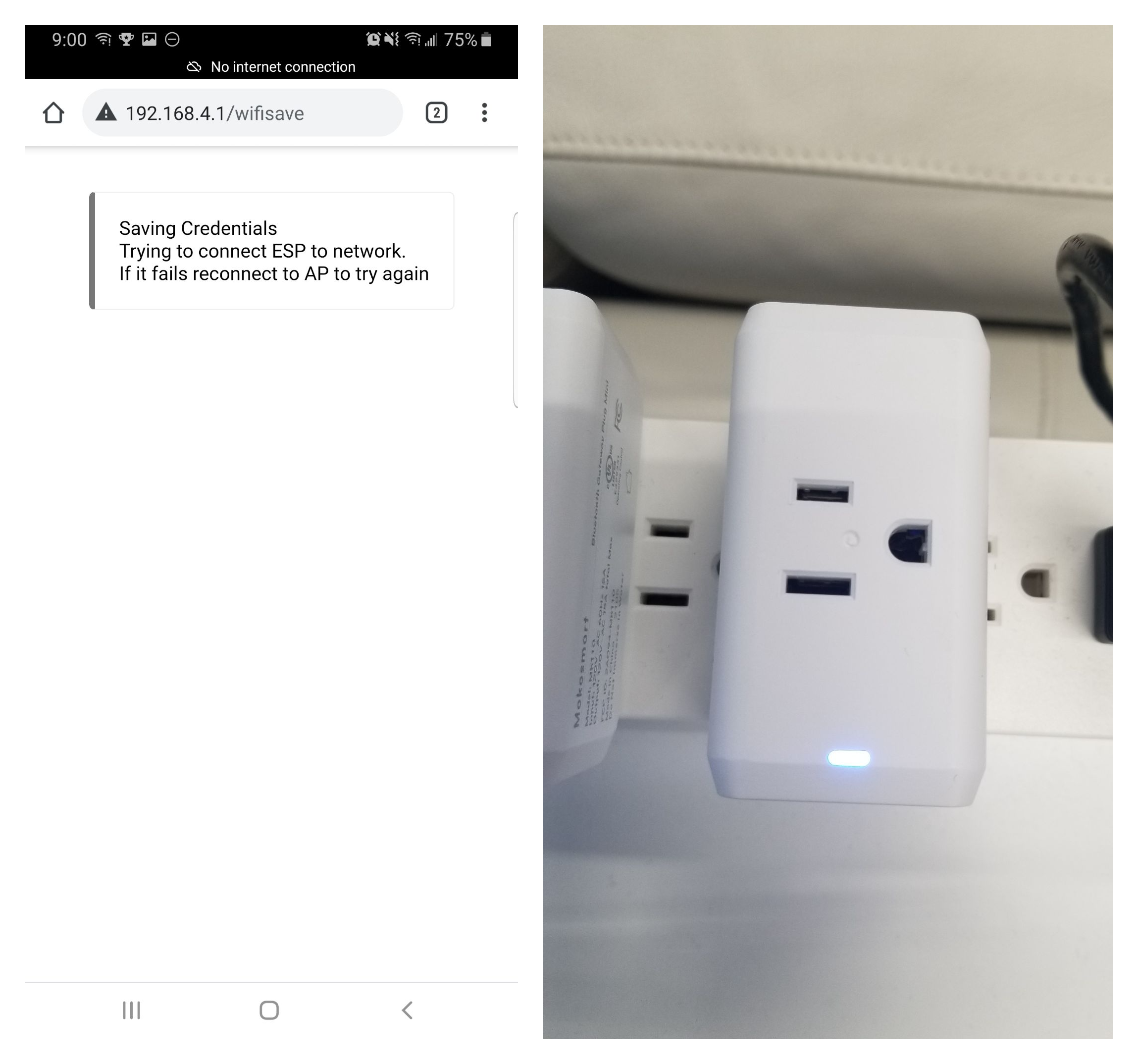

    b. If the configuration is done correctly, the reader should have a solid blue light with an occasional green flash.

To add the reader to the Trax database:

  1. Add the reader as a device

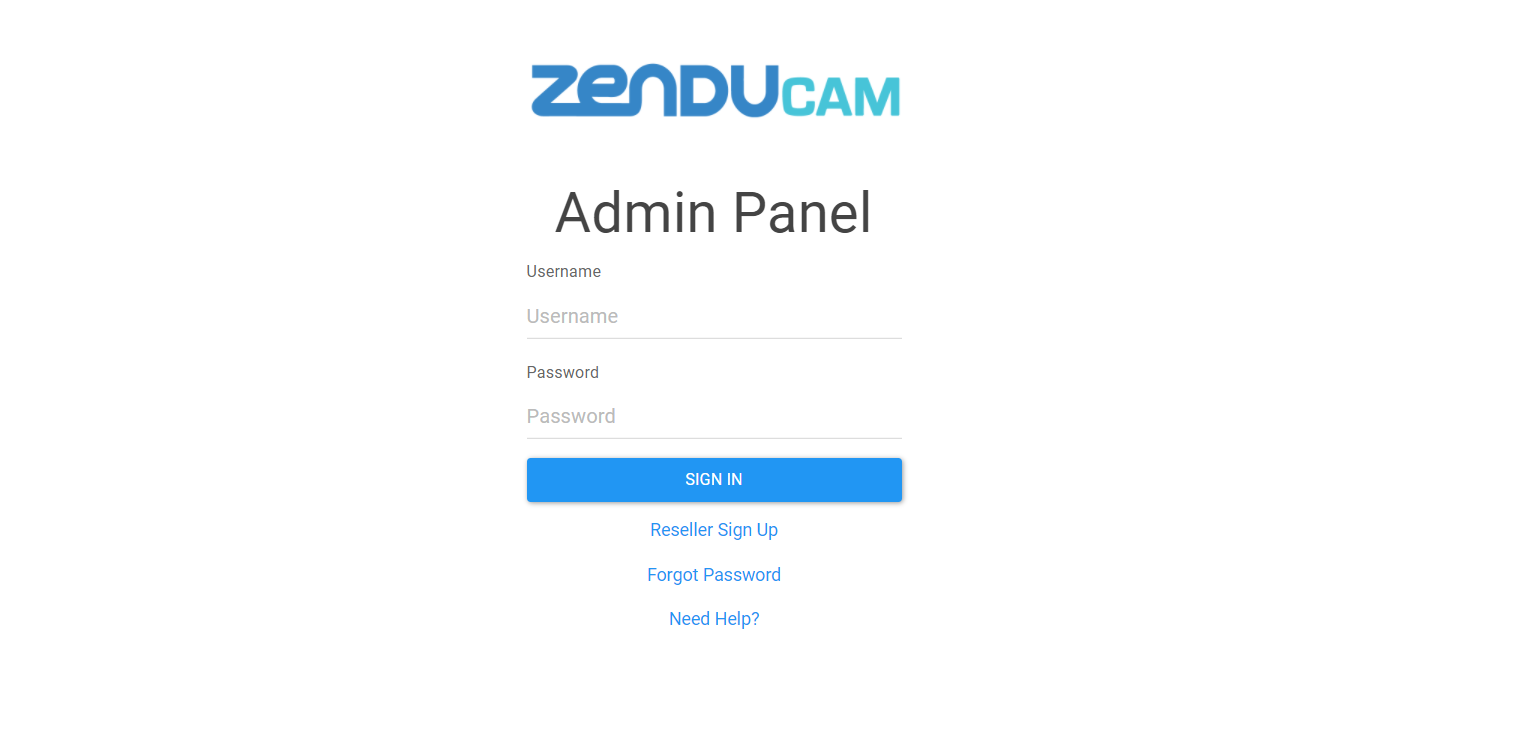

    a. Log into the ZenduONE Admin (https://traxadmin.zenduit.com)

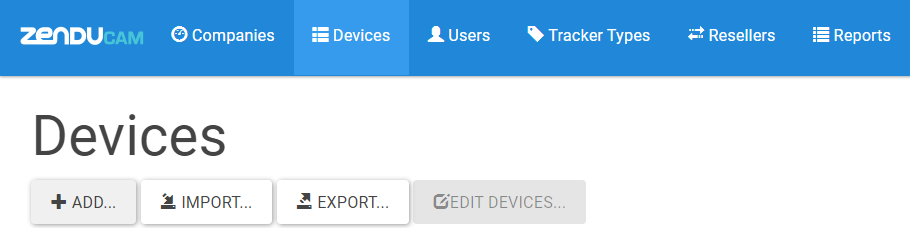

b. Click Devices

c. Click Add

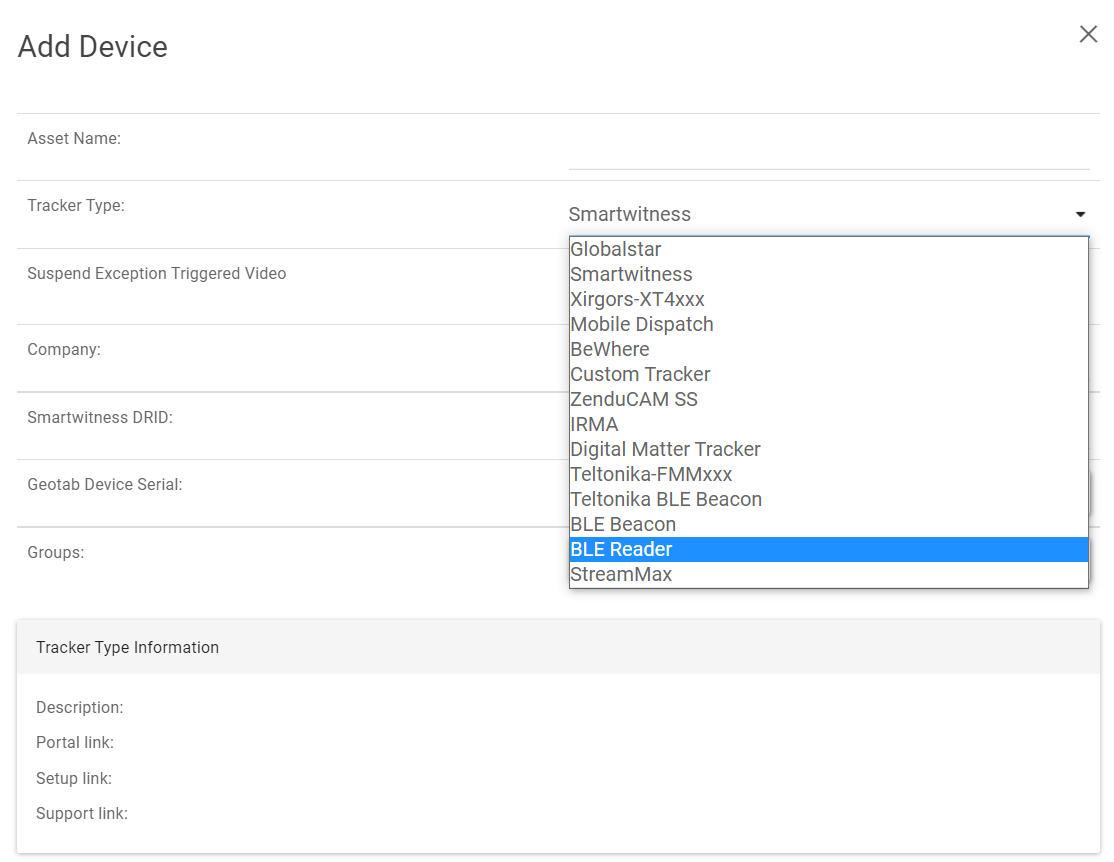

d. Choose “BLE Reader” from the drop down menu under Tracker Type

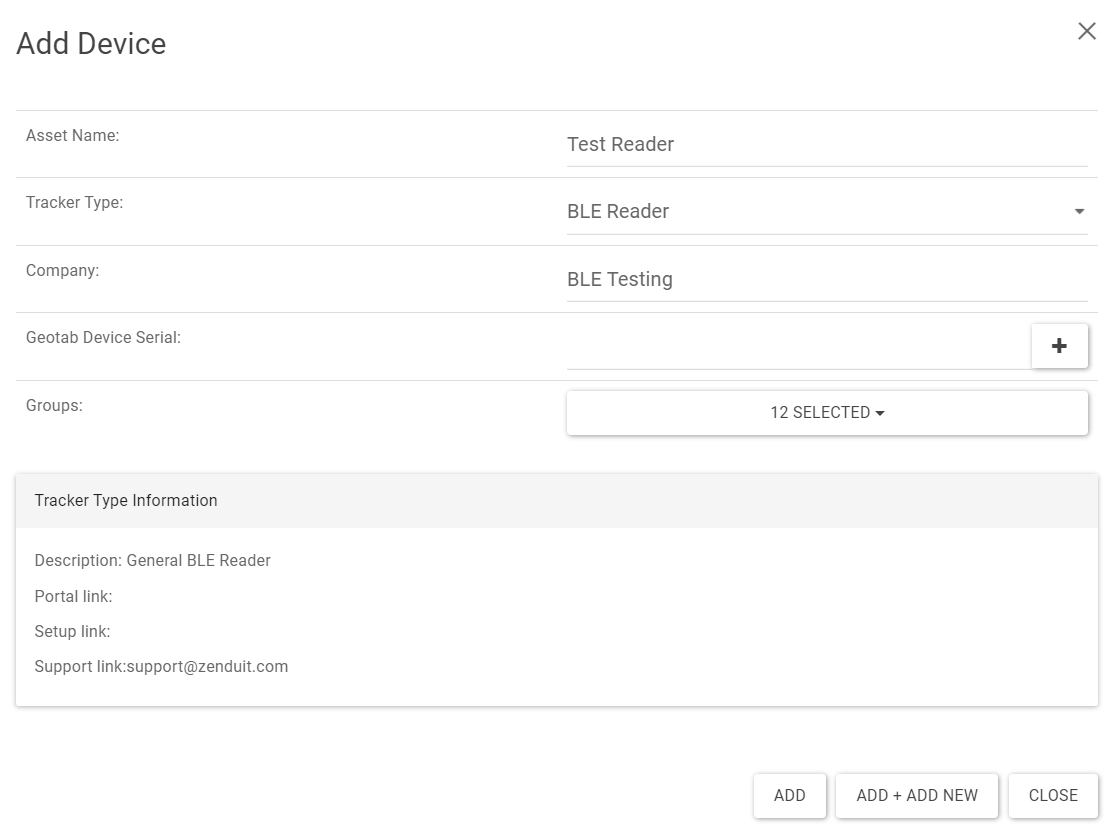

e.Add the Asset Name, Company, and Groups (optional)

f. Click Add

g. After the reader has been added, find it in the devices list and click Edit
