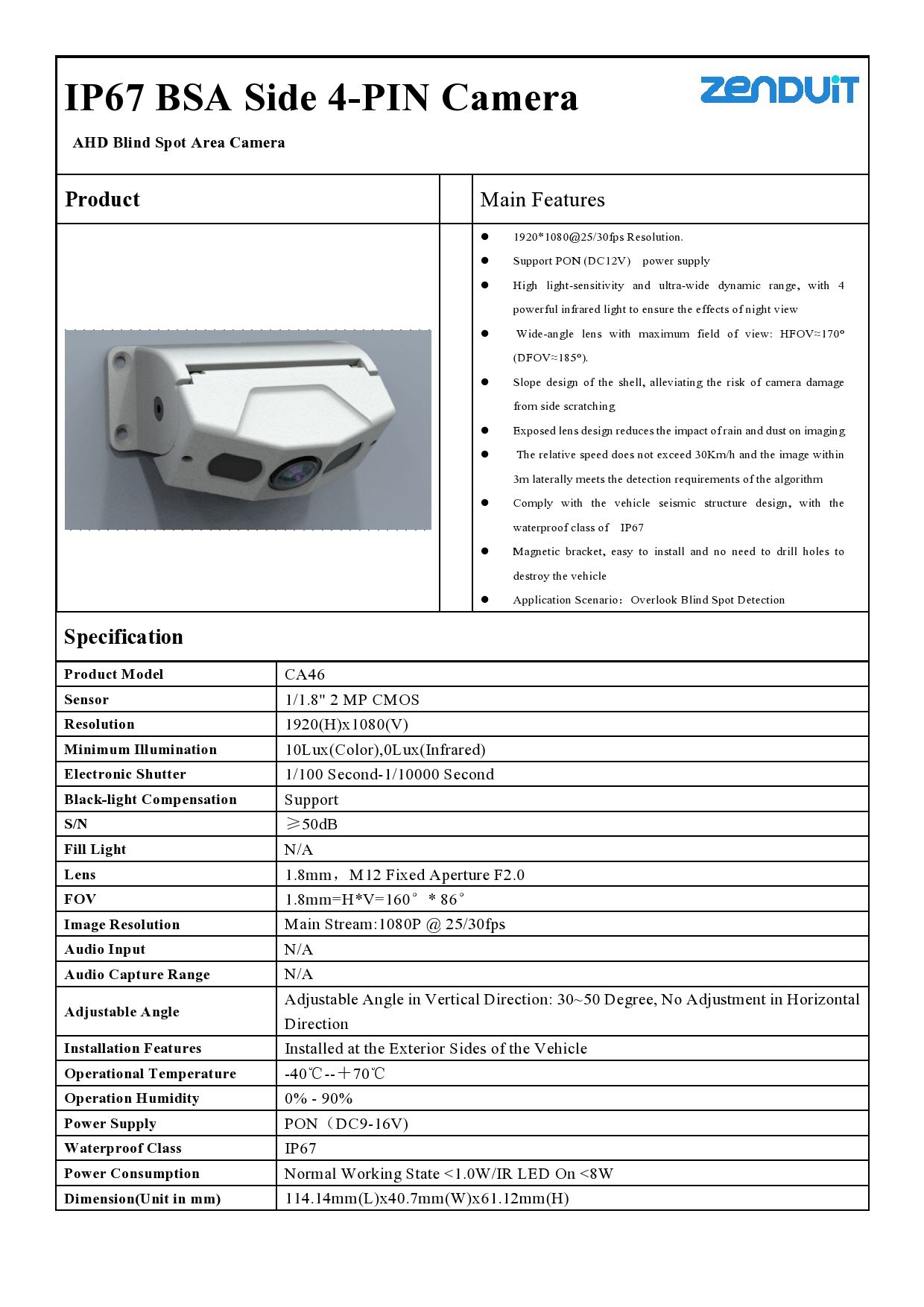

IP67 BSA Side 4-PIN Camera (Blind Spot Area) Specifications Summary

Product Overview: ZenDuit IP67 BSA Side 4-PIN Camera (Model CA46) is a specialized AHD camera designed specifically for Overlook Blind Spot Detection, featuring ultra-wide field of view and rugged construction for exterior vehicle mounting.

Blind Spot Detection Specifications:

• Application: Overlook Blind Spot Detection

• Detection Range: 3m lateral detection at speeds up to 30km/h

• Algorithm Compatibility: Image quality meets detection algorithm requirements

• Mounting: Exterior sides of vehicle with magnetic bracket (no drilling required)

Core Camera Specifications:

• Product Model: CA46

• Sensor: 1/1.8" 2MP CMOS

• Resolution: 1920×1080 at 25/30fps

• Lens: 1.8mm M12 fixed aperture F2.0

• Field of View: Ultra-wide HFOV 160°×VFOV 86° (maximum HFOV≈170°, DFOV≈185°)

• Electronic Shutter: 1/100s to 1/10000s

Image Performance:

• Minimum Illumination: 10 Lux (color), 0 Lux (infrared)

• S/N Ratio: ≥50dB

• Backlight Compensation: Supported

• Night Vision: 4 powerful infrared LEDs for night view

• Dynamic Range: Ultra-wide dynamic range with high light sensitivity

Physical & Environmental:

• Dimensions: 114.14×40.7×61.12mm

• Installation: Magnetic bracket, drill-free installation

• Adjustable Angle: Vertical 30-50°, no horizontal adjustment

• Operating Temperature: -40°C to +70°C

• Humidity: 0-90%

• Waterproof Rating: IP67

• Design Features: Slope design reduces side scratch damage, exposed lens reduces rain/dust impact

Power & Connectivity:

• Power Supply: PON (DC9-16V)

• Power Consumption: <1.0W normal, <8W with IR LEDs

• Video Output: AHD via RS765-4 connector

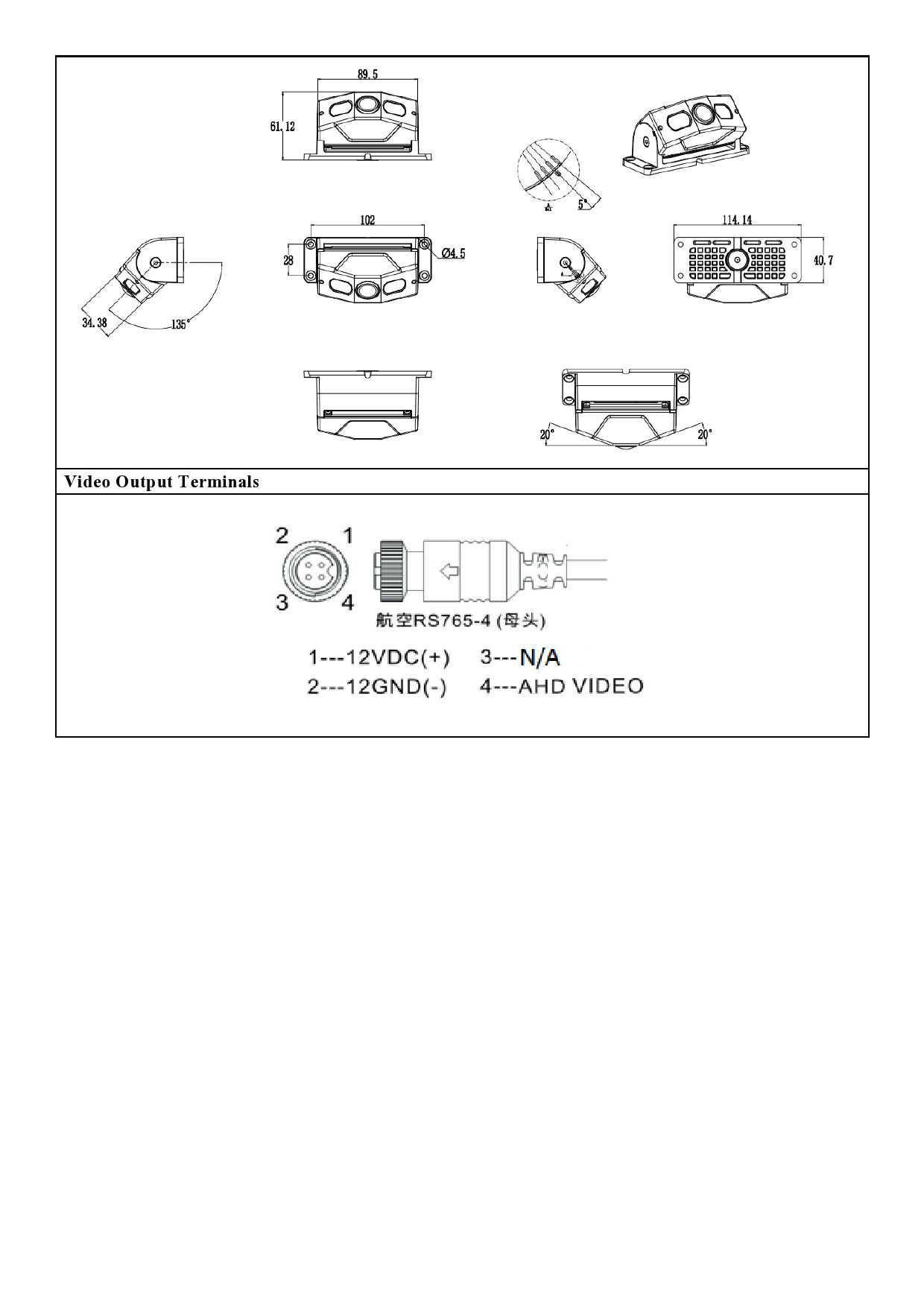

• Connection Pinout: 1-12VDC(+), 2-12GND(-), 3-N/A, 4-AHD VIDEO

• Audio: No audio input/output capability

Key Design Features:

• Ultra-Wide Coverage: Maximum field of view for comprehensive blind spot monitoring

• Rugged Construction: Vehicle seismic structure compliant, IP67 waterproof

• Easy Installation: Magnetic mounting eliminates vehicle modification

• Optimized for BSD: Specifically engineered for blind spot detection algorithms

• Weather Resistant: Slope design and exposed lens reduce environmental impact

Application: Essential for commercial vehicle blind spot detection systems, providing ultra-wide coverage for side monitoring. Integrates with Power Box Max and advanced DVR systems for comprehensive BSD functionality in fleet safety applications.

Unique Value: Specialized BSD camera with the widest field of view in the ZenDuit lineup, specifically optimized for algorithmic blind spot detection with magnetic installation for easy deployment on commercial vehicles.
