Manage ZenBEACON with ZenduONE

This guide covers efficient management and monitoring of ZenBEACONs after completing setup and configuration on both beacon and gateway components. ZenduONE provides comprehensive visibility and control for fleet and asset management through integrated beacon tracking, exception monitoring, and real-time measurement analysis.

System Requirements

For beacons to appear in ZenduONE, the following requirements must be met:

• Beacon Configuration: Beacon must be powered on and properly configured

• Beacon Uploaded to Database: Beacon must be uploaded/added to the database

• Gateway Setup: Gateway must be enabled for Bluetooth connectivity (ZenCAM PLUS, Geotab IOX Bluetooth, ZenTRACK, etc.)

• Proximity Requirements: Beacon must be within effective range of configured gateway

If any requirements are not met, refer to applicable setup documentation:

• Set Up ZenBEACON

• Configure ZenBEACON

• Adding ZenBEACONS to ZenduONE

Beacon Tracking in Maps Overview

Map Display Functionality

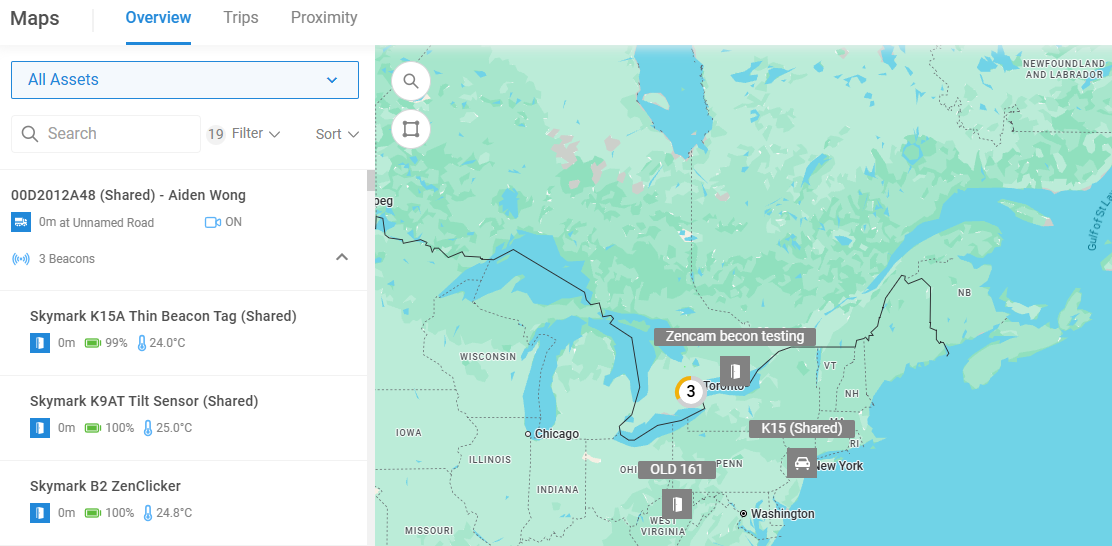

Successfully added beacons appear in Maps > Overview with automatic connectivity to properly configured gateways that have been added as an asset on the database. Connected beacons will display in the dropdown of the gateway it is connected to.

Here, you can see how many beacons are attached to that particular gateway and any details of the beacons such as when it last connected to the gateway, the battery level, and any sensor measurements that apply to that beacon. Beacon icons indicate whether the beacon has triggered an exception based on rules set (more on this later).

Location Tracking

Last Known Location Display: Click beacon from assets list in Maps > Overview to view current or last known location. Beacon location data derives from the last connected gateway position since beacons do not contain integrated GPS functionality.

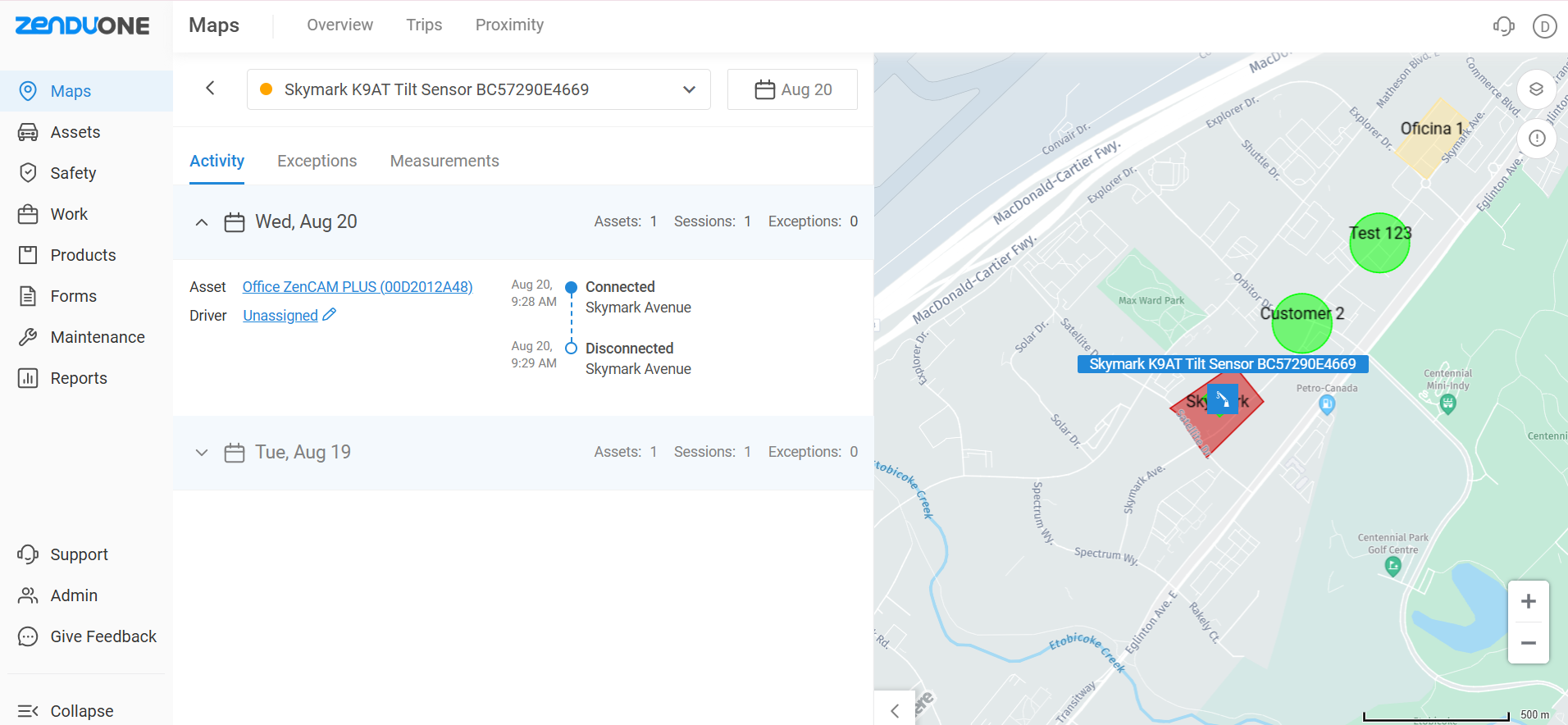

Location History: Click beacon from assets list in Maps > Overview to view current or last known location. Then on the right, access the Activity tab to see the location history for the specified date range. For each trip, the time and address of connection/disconnection, exceptions made, gateway connected to, and driver of the trip are specified.

Exception and Rule Configuration

Rule Setup Process

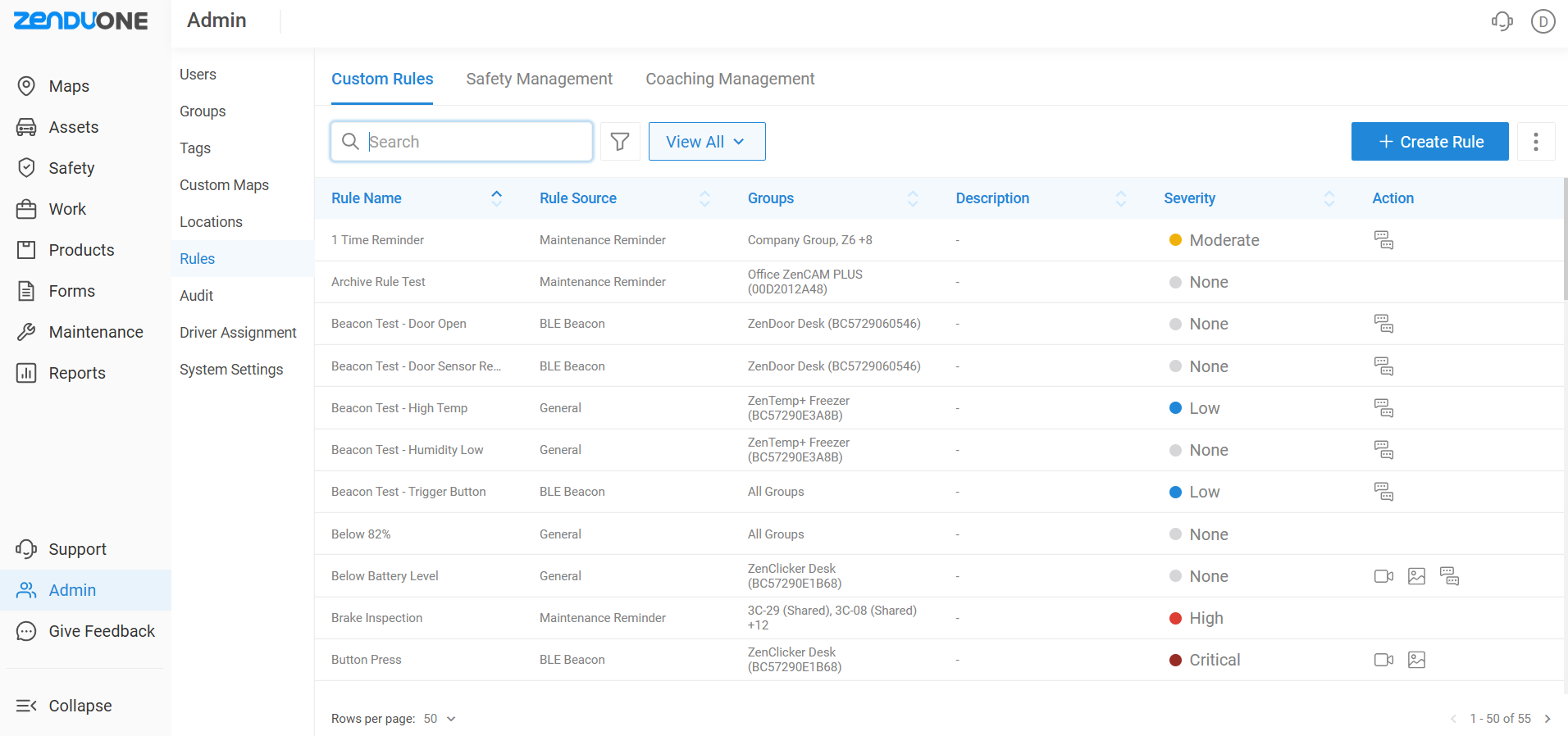

Configure beacon rules through Admin > Rules > Create Rule. Rules can help us leverage custom triggers to automate actions based on beacon data. These rules can be applied to a group of beacons or individual beacons.

Let’s create our first rule together.

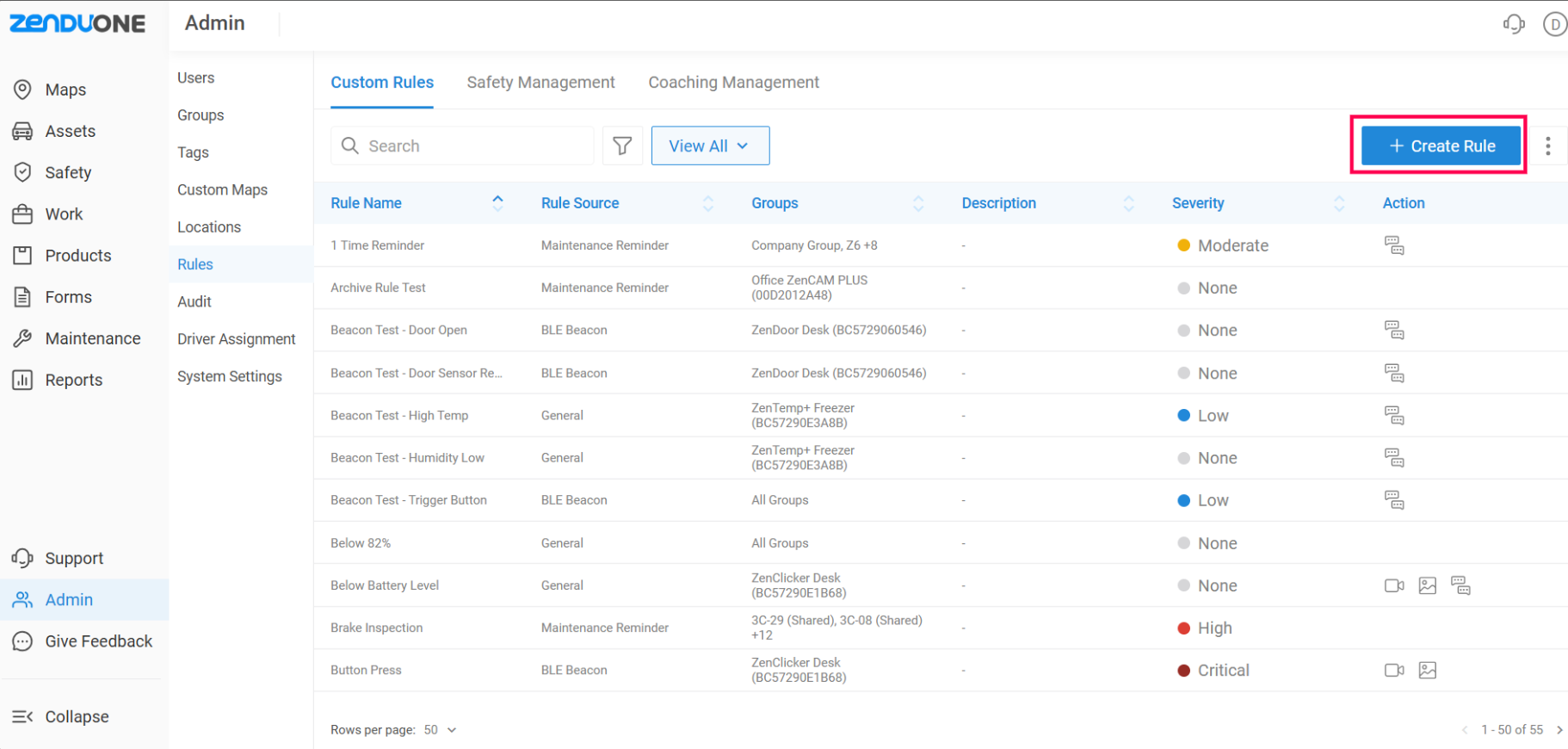

1. Begin by clicking on the Create Rule button in the top right corner



2. Fill out the fields under Details

   1. Name of your rule

   2. Entities (ZenBEACONS) that this rule applies to

   3. Description of your rule

   4. Severity of your rule

3. Fill out the fields under Rule Conditions

   1. Trigger Range of your rule

   2. Rule Source for your rule. For ZenBEACONS, here are the ones that might apply to your ZenBEACONS:

      Rule Source	Rule Type
      General	Offline more than, Entered Location, Exited Location, Inside Location, Temperature, Humidity
      BLE Beacon	Door open/closed, Door Sensor Removed, Trigger Button, Motion Detection

4. Specify the Trigger Actions

5. Press Save in the top right

For comprehensive guidance on creating rules, reference:

• ZenduONE User Guide - Rules

• ZenduONE Rule Types

General Category Rule Types:

• Offline duration thresholds

• Battery level minimums

• Temperature monitoring

• Humidity tracking

• Location enter/exit/inside parameters

BLE Beacon Category Rule Types:

• Door open/close detection

• Door sensor removal alerts

• Trigger button activation

• Motion detection monitoring

Model-Specific Functionality: Certain rule types apply only to specific beacon models (example: ZenDoor exclusively supports door open/close and door sensor removal rules).

Rule Configuration Example

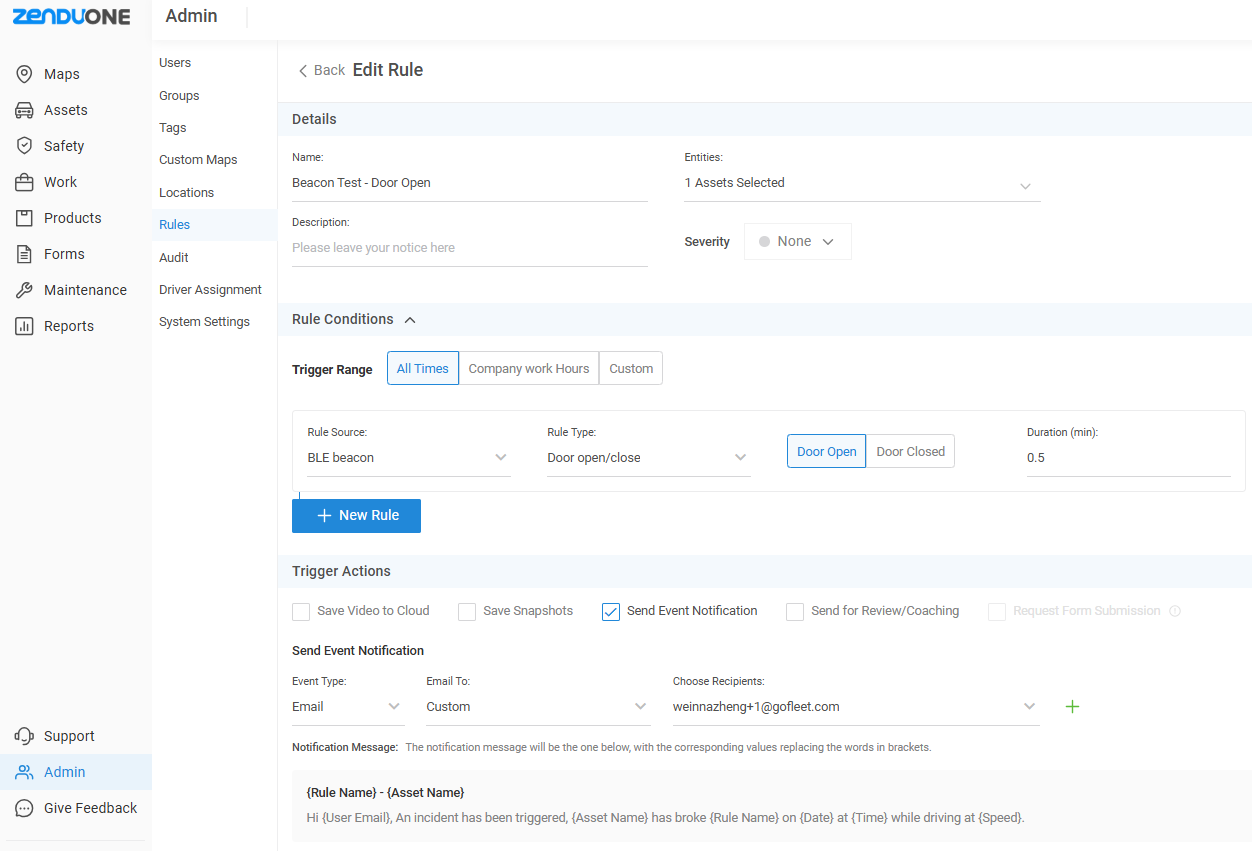

Door monitoring rule configuration for 30-second open duration triggers email notifications and exception creation for comprehensive monitoring and response.

Exception Monitoring

Exception Access and Review

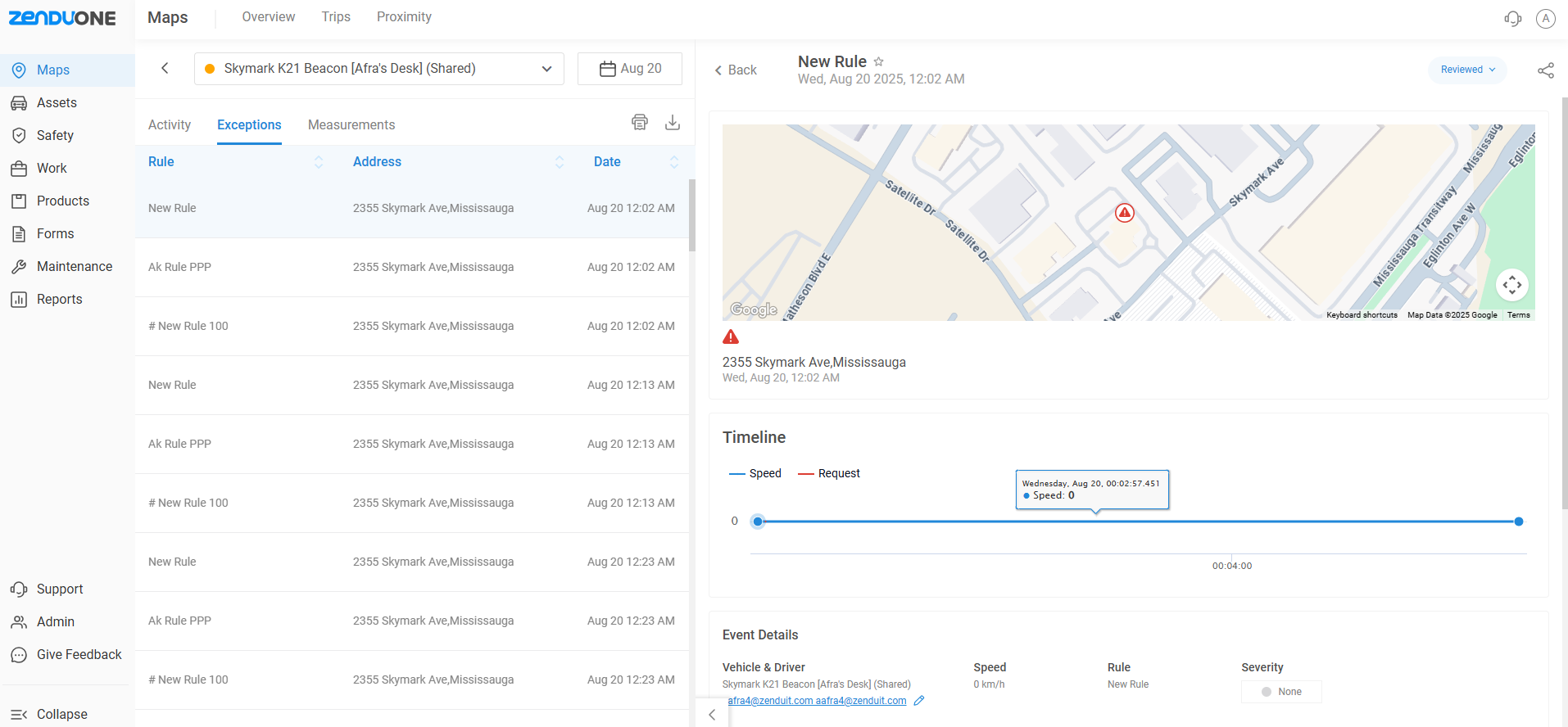

Access beacon details through Maps > Overview with default display showing Exceptions tab containing comprehensive rule trigger logs.

Exception Information Display:

• Rule name that triggered exception

• Associated gateway at exception time (identified by serial number)

• Exception date and timestamp

• Related measurement data

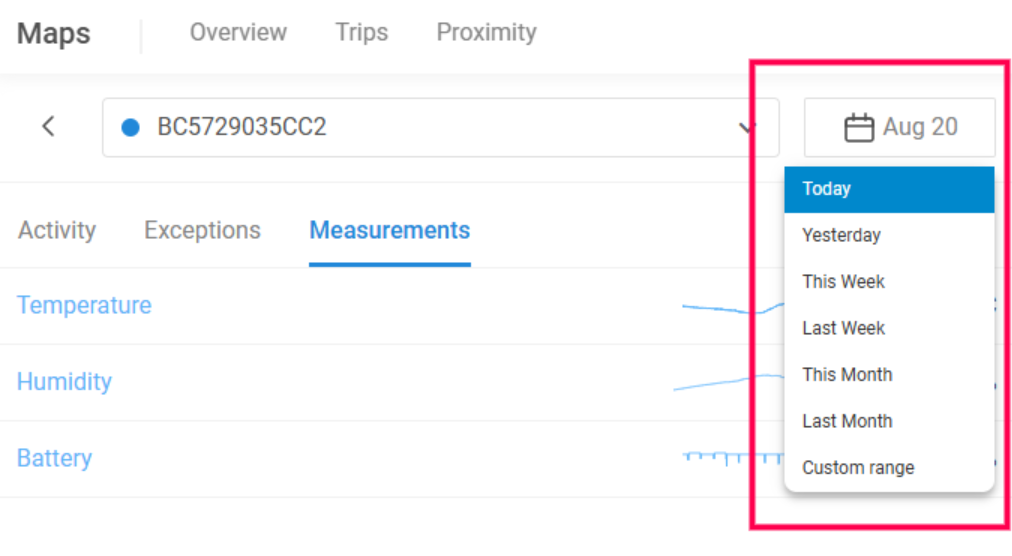

Date Range Flexibility: Modify date range selector for historical exception review across different time periods.

Measurement Analysis

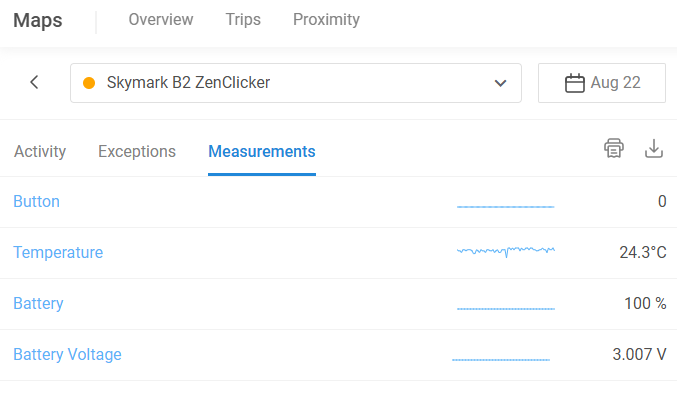

You can access your beacon’s measurements using the Measurements tab. When you first click on the Measurements tab, you’ll see the available measurement data available for the beacon.

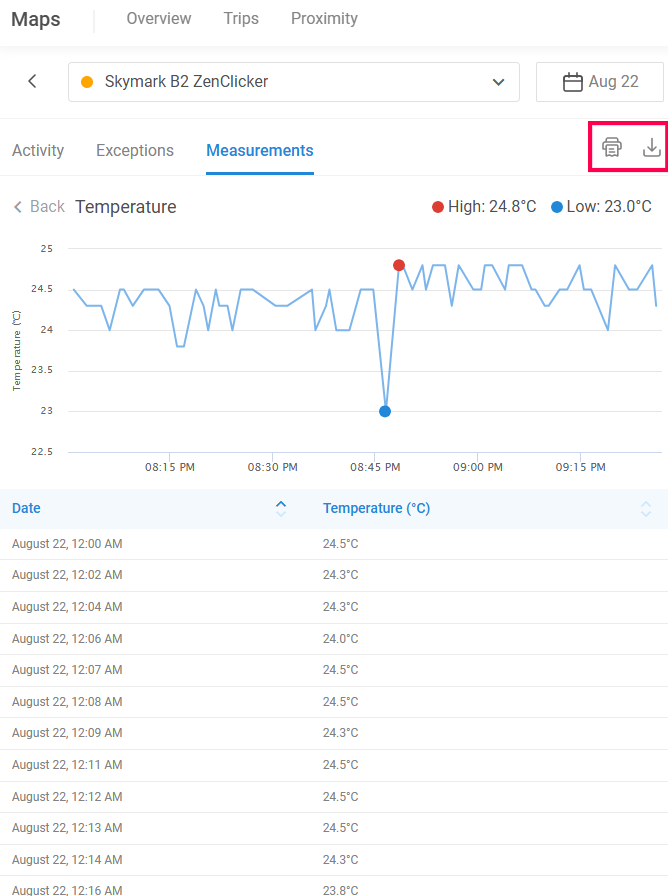

Clicking on one of these fields will reveal the chart as well as table data for the beacon measurement. You can see the highest and lowest data recording for the specified time interval on the chart. You can also scroll to see the tabulated data. In the top right corner of the side panel, you can print the chart and tabulated data or download it as an excel.

Here are the available measurements for each ZenBEACON:
