ZenTemp+ Installation Guide

Product Overview: ZenTemp+ is a rugged BLE beacon designed to monitor temperature and humidity in assets, pallets, or containers. It comes in a rectangular casing with small holes on the short sides for screw mounting. The device is powered by a replaceable battery and can be manually turned on/off using an internal button. It is ideal for long-term, secure deployments where environmental monitoring is required.

Written By Support Team

1. Key Features

  • Temperature & humidity monitoring: Continuously reports ambient conditions.

  • Rugged rectangular casing: Durable housing for industrial or pallet applications.

  • Mounting options: Screws (included), optional double-sided tape (purchased separately).

  • BLE beacon: Compatible with ZenCam, ZenTrack, Asset Trackers, and ZenduOne.

  • Battery & power: Replaceable battery, internal button for manual power on/off.

2. Before You Start

You will need:

  • ZenTemp+ device

  • Screws for mounting (included) or optional double-sided tape (purchased separately)

  • Compatible BLE gateway

  • Smartphone with KBeacon Pro app installed (iOS/Android)

No password is required to activate the device.

3. Step 1 – Prepare the Device

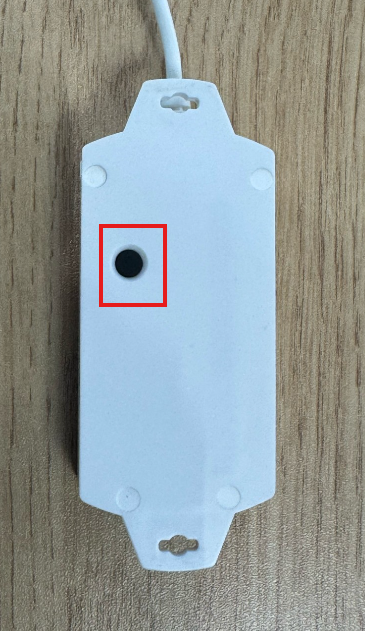

  1. Locate the power button on the device.

  2. Press and hold the button to turn the device on. The beacon will begin broadcasting.

  3. Verify battery level in KBeacon Pro before installation.

4. Step 2 – Mounting the Device

Option 1 – Screws (recommended for rugged applications)

  1. Position the device where it will have a stable surface.

  2. Align the mounting holes with the surface.

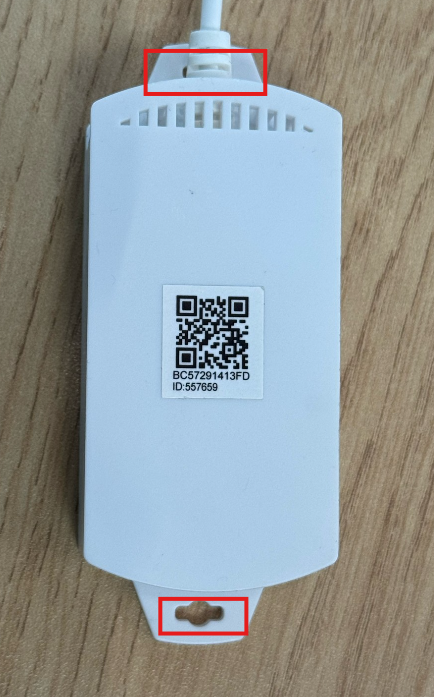

  3. Secure the device using the screws through the short-side holes.

  4. Ensure the device is stable and does not shift during transport or operation.

Option 2 – Double-Sided Tape (optional)

  • If you prefer not to drill, purchase strong double-sided tape.

  • Attach the tape to the back of the ZenTemp+ device.

  • Press firmly onto the desired surface to secure.

  • Note: Adhesive may provide less stability in high-vibration environments.

5. Step 3 – Verifying Operation

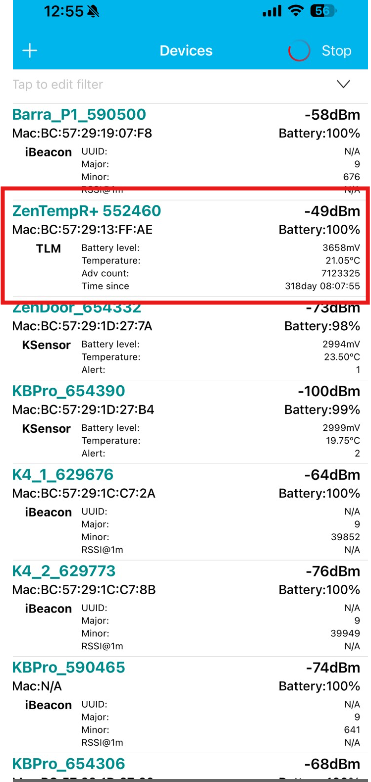

  1. Open KBeacon Pro on your smartphone.

  2. Scan for nearby BLE devices.

  3. Select the ZenTemp+ beacon to check:

    • Device is broadcasting

    • Temperature readings are reasonable

    • Humidity readings are present

    • Battery level is sufficient

6. Step 4 – Linking to ZenduOne

  1. Log in to ZenduOne.

  2. Navigate to the BLE Beacon / Devices section.

  3. Add a new beacon:

    • Type: BLE Beacon / Asset Tracker

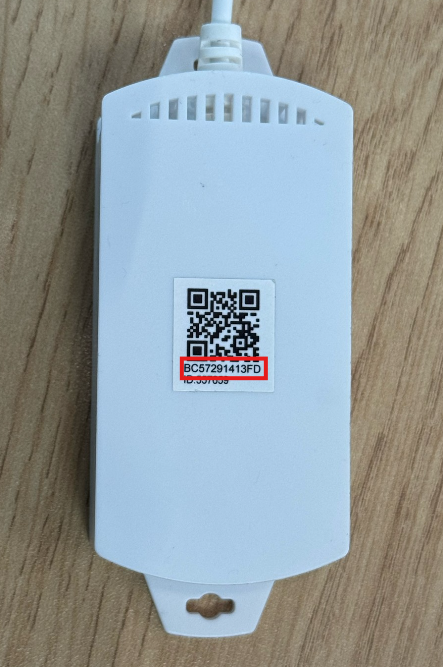

    • Enter ZenTemp+ serial/MAC

  4. Assign to the correct asset (e.g., pallet, container, vehicle).

  5. Verify that temperature and humidity readings appear correctly in the platform.

7. Best Practices & Notes

  • Use screws whenever possible for rugged applications.

  • Optional double-sided tape can be used for temporary or low-stress installations.

  • Confirm the device is broadcasting before final installation.

  • Document device serial, location, and battery status for support or maintenance.
