ZenANCHOR+ (Outdoor)

Robust BLE IoT Gateway for Outdoor Asset Tracking

Written By Support Team

Product Type: Industrial / Outdoor Bluetooth (BLE) Gateway
Reference Hardware: KKM KG03 Robust Outdoor IoT Bluetooth Gateway (IoT Solutions Manufacturer)
Primary Use: Outdoor yards, lots, job sites, containers, trailers, mobile assets (trucks/buses) where a rugged BLE-to-cloud bridge is required.

1) Product Overview

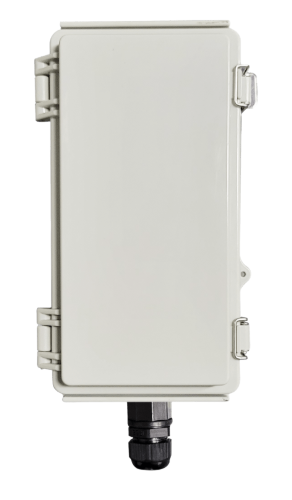

ZenANCHOR+ (Outdoor) is a rugged outdoor/industrial BLE gateway built for harsh environments. It continuously scans/receives BLE advertisements (BLE 4.x/5.0) from beacons and BLE sensors (iBeacon, Eddystone, sensor tags, etc.) and uploads the collected data to a local or cloud server using MQTT or HTTPS over Ethernet / Wi-Fi / Cellular (3G/4G)—without smartphones or mobile apps. (IoT Solutions Manufacturer)

It is designed for outdoor conditions with an IP67 enclosure, and supports long-range BLE using Bluetooth 5.0 LE Coded PHY plus built-in amplification, enabling up to ~600 m (open space) depending on mode and environment. (IoT Solutions Manufacturer)

2) What ZenANCHOR+ Enables in ZenduONE (Outdoor)

With ZenANCHOR+ deployed across outdoor sites, customers can:

  • Detect and monitor assets equipped with BLE tags/beacons (trailers, containers, tools, powered equipment)

  • Create outdoor zones (yard sections, gates, loading bays) and infer “last seen” / “near zone” using gateway proximity

  • Collect sensor measurements from BLE sensors (e.g., temperature/humidity) and associate them to assets for outdoor operations

  • Use always-on infrastructure (no phone scanning), supporting continuous visibility and alerts

3) Key Features (Product Capabilities)

From the KG03 reference design, ZenANCHOR+ supports: (IoT Solutions Manufacturer)

4) Typical Outdoor Use Cases

The reference page highlights scenarios that map directly to ZenANCHOR+ deployments: (IoT Solutions Manufacturer)

5) Specification Sheet (ZenANCHOR+ Outdoor)

5.1 Basic / Mechanical

5.2 Environmental

5.3 Power & Interfaces

5.4 Bluetooth (BLE) Radio

5.5 Network Connectivity

Wi-Fi

Protocols (Server Upload)

5.6 LTE / Cellular (Optional)

5.7 GNSS / GPS (Optional)

6) Data Flow and Integration Notes (Knowledge Base Ready)

ZenANCHOR+ works as an always-on BLE scanner + uplink bridge:

  1. BLE Scan: Detects nearby beacon/sensor advertisements (including iBeacon/Eddystone and BLE sensor frames). (IoT Solutions Manufacturer)

  2. Edge Filtering: Supports “filter rules” to control what gets forwarded (use-case dependent). (IoT Solutions Manufacturer)

  3. Store-and-forward: Buffers data when offline and uploads after reconnect. (IoT Solutions Manufacturer)

  4. Uplink: Sends data to server using MQTT/HTTPS with TLS. (IoT Solutions Manufacturer)

  5. Optional GPS context: Can include GPS location in alive messages or alongside beacon scan data (when GPS option is enabled). (IoT Solutions Manufacturer)

Typical fields stored/processed by a platform like ZenduONE include: gateway ID, timestamp, beacon/sensor ID, RSSI, sensor measurements, and optionally GNSS location (if enabled). (Exact payload depends on your ingestion schema.)

7) Deployment Guidance (Outdoor)

  • Use Coded PHY mode when you need maximum range; expect lower throughput vs 1 Mbps mode (range differs by BLE mode). (IoT Solutions Manufacturer)

  • Prefer PoE or DC hard-power for fixed yard installations; use LTE + GPS for mobile assets when required. (IoT Solutions Manufacturer)

  • Plan for environment effects (containers/metal, dense stacks, weather) that can impact real-world BLE range vs open-space values. (IoT Solutions Manufacturer)
