ZenTrack Power Installation Guide

Written By Support Team

1. Purpose & Scope

This guide explains how to physically install the ZenTrack Power device into an asset (vehicle or trailer) and verify that it powers up, communicates, and operates correctly.

Note: Pre-configuration (firmware, config file, APN, DMS registration) should already have been done by fulfillment or technical staff before installation.


2. Device Overview

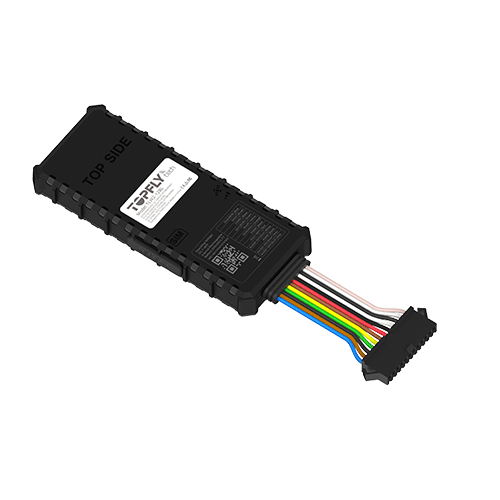

The ZenTrack Power is a hardwired GPS tracker designed for monitoring vehicles, trailers, and commercial fleet assets. It supports external power installation and can be configured for ignition detection and other I/O-based behaviors depending on your configuration file.

  • Model: ZenTrack Power

  • Type: Hardwired GPS Asset Tracker

  • Certifications: B1/B2/B3/B4/B5/B/8/B12/B13/B18/B19/B20/B25/B28

Key Capabilities

  • GNSS tracking (location, speed, heading)

  • Cellular communication to backend platform

  • Ignition detection (when wired and enabled in configuration)

  • BLE support (for sensors and beacons) when enabled in configuration

  • Digital inputs/outputs (depending on configuration and harness usage)

  • Alerts and events based on configuration (motion, tamper/disconnect, ignition, etc.)

Important: Applying ZenTrack Power wiring or installation assumptions to other models may result in malfunctions or hardware issues. Always confirm the device model and the approved wiring map before proceeding.


3. Installation Prerequisites

Before going to the asset, confirm that:

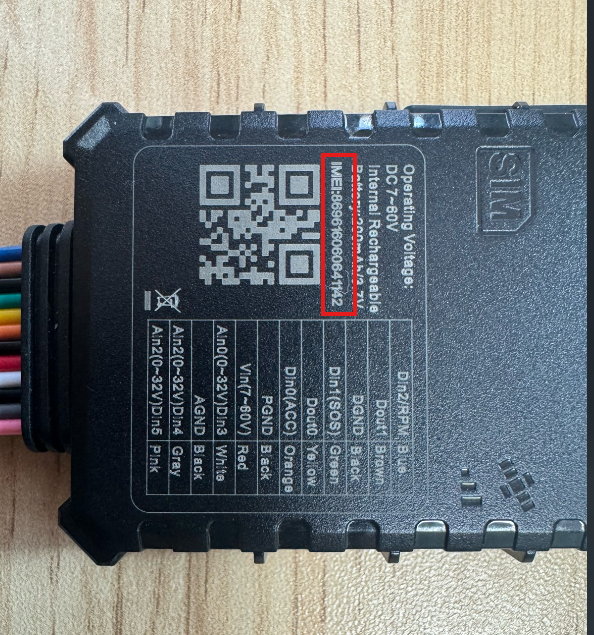

  • The IMEI and model match the deployment plan.

  • The device has been pre-configured (firmware, config file, APN, etc.).

Required Resources:

  • Access to the asset’s power source (battery or main power line).

  • Backend platform access (if you will validate the device on the platform).

  • Basic installer tools (trim tools, zip ties, electrical tape, crimp/heat-shrink, voltage meter).


4. Mounting & Power Connection

4.1 Locate the Installation Point

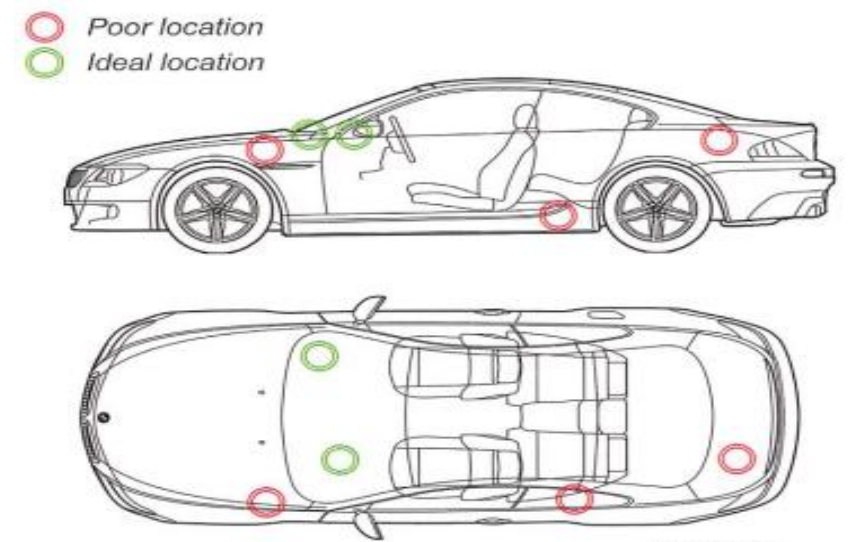

The ZenTrack Power is hardwired to the asset’s power supply or a protected connection within the appropriate compartment. Recommended locations:

  • Behind dashboard (vehicles)

  • Electrical compartment (trailers/equipment)

  • Protected interior paneling away from heat, water intrusion, and moving parts

4.2 Prepare the Wiring

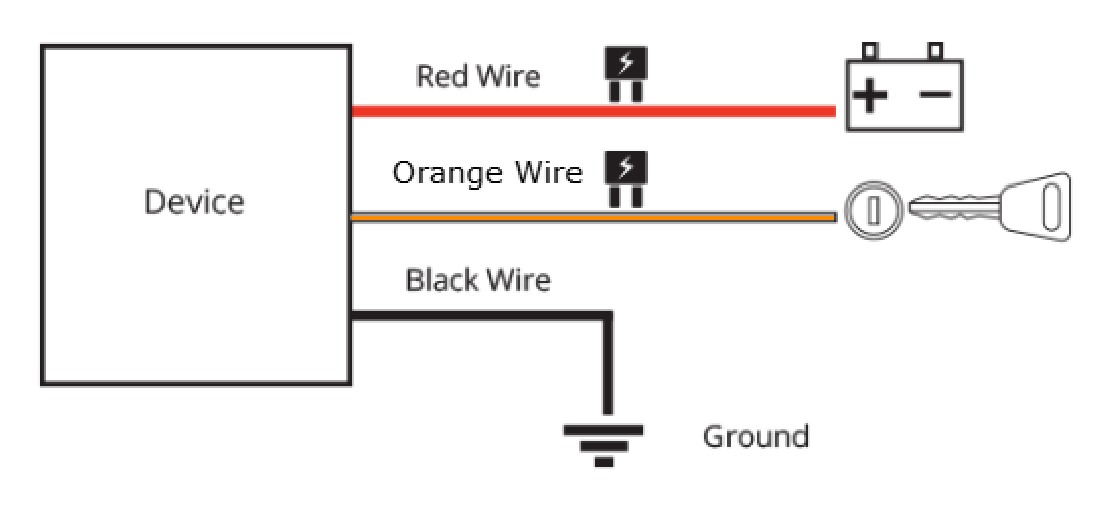

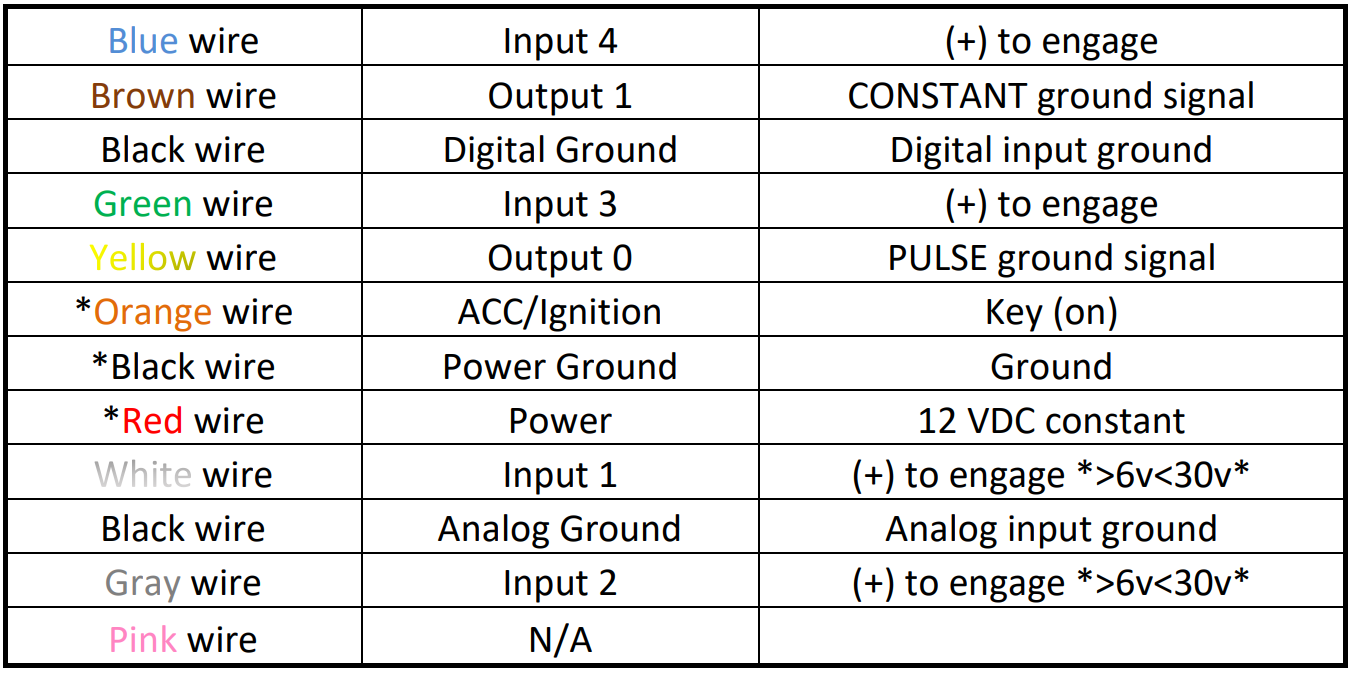

For ZenTrack Power installation, use the following wires:

  • Power (7V–60V DC): Red

  • Ground: Black (the black wire next to the red power wire)

  • Ignition: Orange

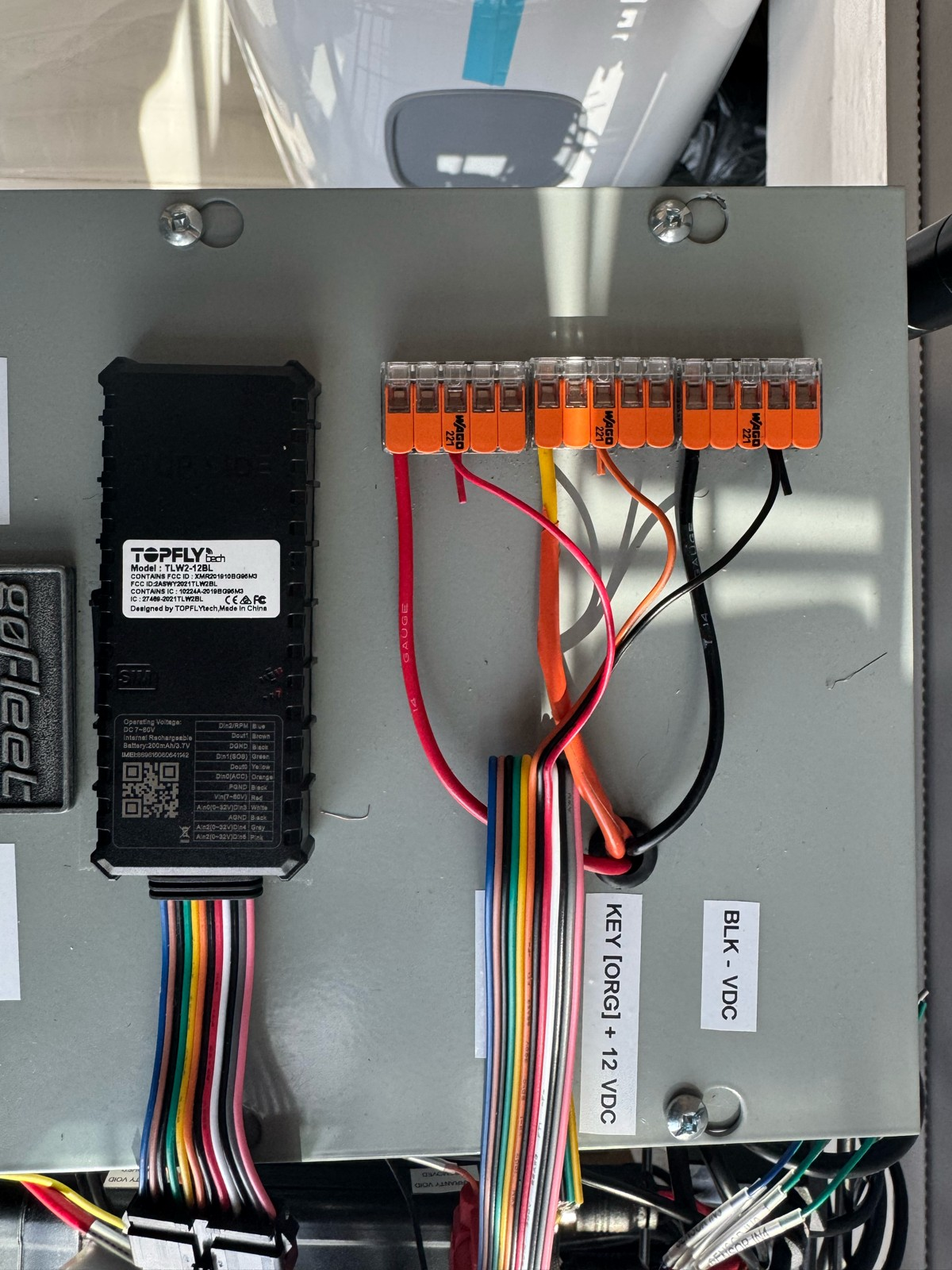

Note: There may be multiple ground wires; for installation, use the black wire adjacent to the red power wire as your primary ground. Other wires may exist on the harness (inputs/outputs/grounds). Do not connect them unless your install plan/configuration requires them.

4.3 Power Connection

  1. Connect Red (Power) to a constant power source (7V–60V DC).

  2. Connect Black (Ground next to Power) to a solid chassis/negative ground point.

  3. The device will automatically power on once voltage is present.

  4. Connect Orange (Ignition) to an ignition/ACC source if ignition reporting is required by your customer/platform setup.

Best practice: Confirm voltage and ground integrity with a meter before finalizing connections.

4.4 Mounting the Device

  • Securely mount the device inside the asset, avoiding areas where it could be kicked, crushed, or disturbed by moving parts.

  • Ensure cables are not under tension.

  • Avoid routing near pedals, steering linkages, sharp edges, and high-heat sources.

  • If the power connection is exposed or vulnerable, use an extension cable and secure the device in a safer area.

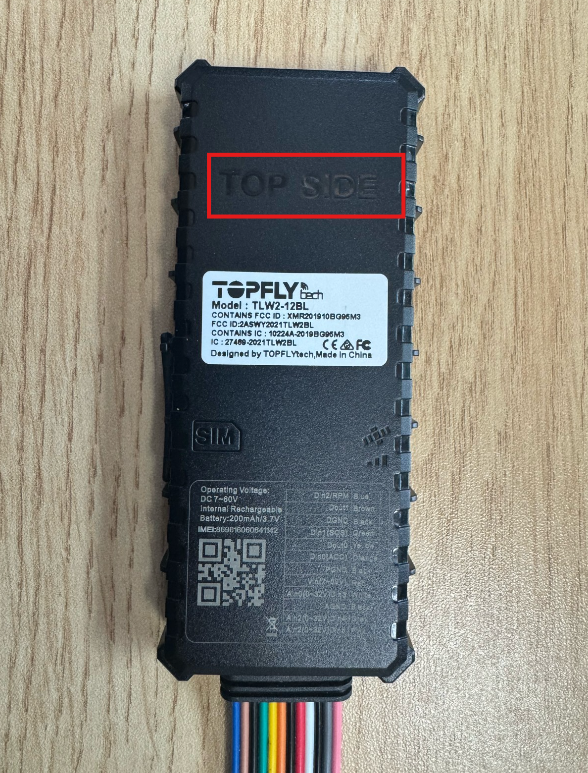

  • Ensure the device is oriented correctly:


5. LED Indicator & Power Check

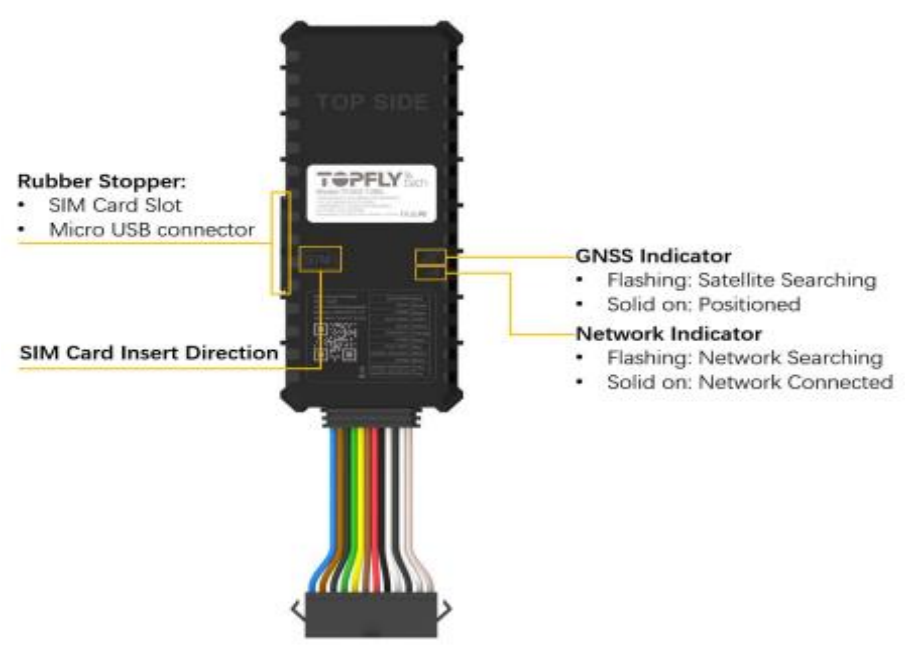

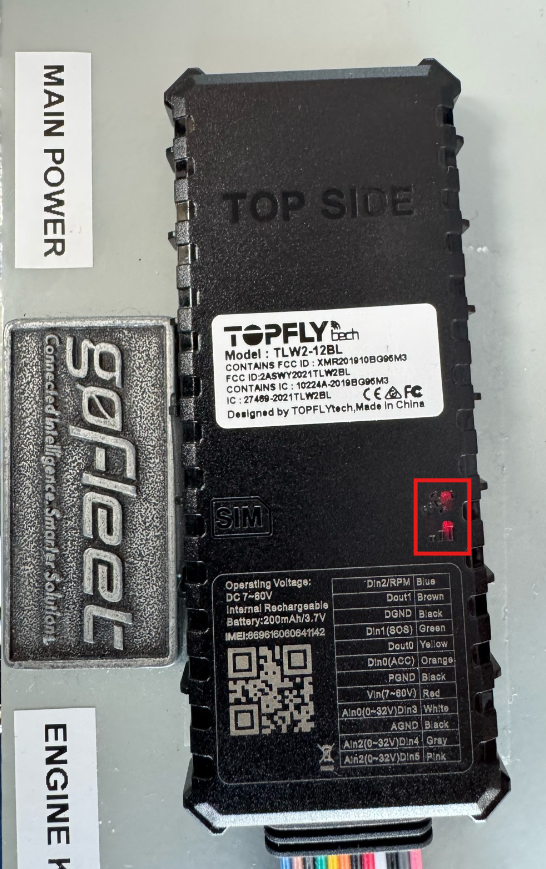

Once powered, observe the LED indicators:

  • Network LED (cellular):

    • Flashing: Network searching

    • Solid: Network connected

  • GNSS LED:

    • Flashing: Satellite searching

    • Solid: Positioned

These confirm power, GNSS acquisition, and cellular connectivity.

If there is no LED indication:

  • Check the power supply using a voltage meter.

  • Confirm the ground point is clean/solid and not painted/coated.

  • Confirm constant power is truly constant (not switched).

  • Re-check you used the black ground wire next to the red power wire.


6. Basic Connectivity Check

Wait a few minutes with power on so the device can acquire GNSS fix and connect to the cellular network.

In your backend platform (e.g., ZenduOne):

  1. Search for the device by IMEI.

  2. Confirm: Recent location/telemetry is updating.

  3. Confirm: Ignition status changes appropriately when the asset is turned ON/OFF (only if the orange ignition wire is connected and enabled).


7. Finalize Installation

Secure the device and all cables to ensure:

  • No cables are hanging loosely.

  • Nothing interferes with pedals or driver comfort.

  • All splices are insulated and strain-relieved.

Document: Asset ID, VIN, license plate, Device IMEI, Installation date, and mounting location.
